CE Certificate 48v 500w Electric Fat Bike Kit Electric Conversion Kit

Changzhou Suring motor technology CO.,LTD

CE Certificate 48v 500w Electric Fat Bike Kit Electric Conversion Kit

Brand Name : Suringmax

Model Number : SRFAT500W

Certification : ce

Place of Origin : Jiangsu, China

MOQ : 1 set

Price : $326 per set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 sets per month

Delivery Time : 20 working days

Packaging Details : Good quality 5-layer corrugated paper cartons with foam for all the goods

Voltage : 48V

Power : 500w

Color : Black

Warranty : 3 years

Max speed : 50km/h

Weight : 7.5kg

Brake : V/Disc Brake

Display : LCD/LED

Controller : 48V 22A Controller

Battery : Optional Lithium Battery

Wheel size : 20-29inch

Dropout : 170-190mm

Max torue : 50Nm

Contact Now

48v 500w fat bike electric conversion kit

Specification:

48v 500W Gearless Fatbike Motor

1. Magnet: 27mm

3. MAX speed=50KM/H

5. Display:LCD/LED

7. Double hall sensor

9.Max Torque:50N.M.

2.Dropout:170mm/190mm

4.Weight:7.5kg

6.Brake lever:V/Disk brake

8.Rim support: 20-29''(700c)

10.Temperature sensor for option

Controller48V22A brushless controller
Battery48V11.6AH LG cell lithium battery
DisplayLED/LCD Display for option
ThrottleWuxing Thumb / Twist throttle for Optional
BrakingE-brake or brake sensor for Optional
PAS8 / 10 / 12 magnets pedal assistant system


hot sale 500w fat tire ebike
Reference diagram
hot sale 500w fat tire ebike

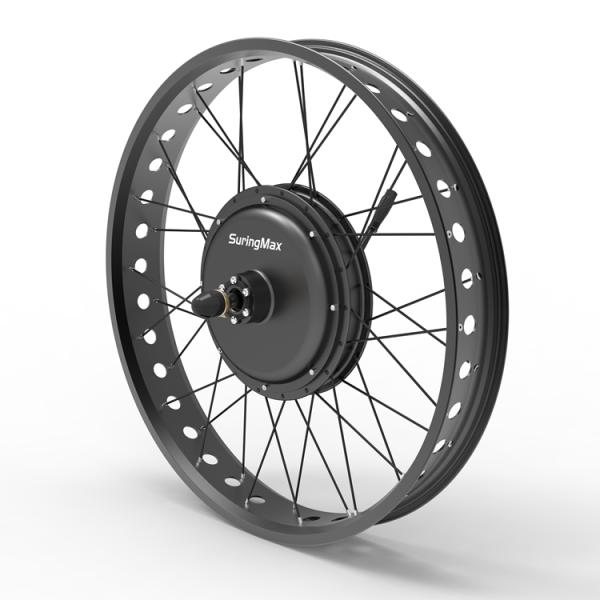

48v 500w gearless fat bike motor with 26 inch rim and spokes



48V 11.6Ah lithium battery Battery-- installed on the frame


48v 22A square wave controller—sine wave will be $3 more



LCD/LED Display--Data clear, show temperature, mileage, speed, time, PAS level, electricity, voltage, power, etc



Throttle—better shifting


E-brake/Brake sensorWorking to cut off power


PAS 8 magnet


Other products
hot sale 500w fat tire ebike
How to determine what you want

  1. What's size of the wheel? -----------------------You can choose 20inch / 24inch / 26inch / 28inch / 700C

  2. How fast do you need? -------------------------- You can choose 30km/h---50km/h ( with load )

  3. What type of Motor cable do you need? ------------------------Normal is DJ2.8. 1If you other type, please tell us.

  4. What type of display?------------You can choose LCD8/ LCD5 / LCD3/LCD6/LED 900S

  5. What type of Throttle ?---------------------Wuxing Thumb throttle or twist throttle

  6. What type of PAS? -------------------- Normal is 8 magnets, if you need other type, please let me know.

  7. What type of Ebrake?------------------Normal is wuxing ebrake 106pdd

  8. Any other ideas, We are very willing to support if Possible. Because we are Factory!

Packaging & Shipping

hot sale 500w fat tire ebike

hot sale 500w fat tire ebike

hot sale 500w fat tire ebike
